Admin Panel Configuration


Here you can make the changes in global settings and configure the SenseOps UI Builder. Get the Admin Panel link from user account menu.


General Setting

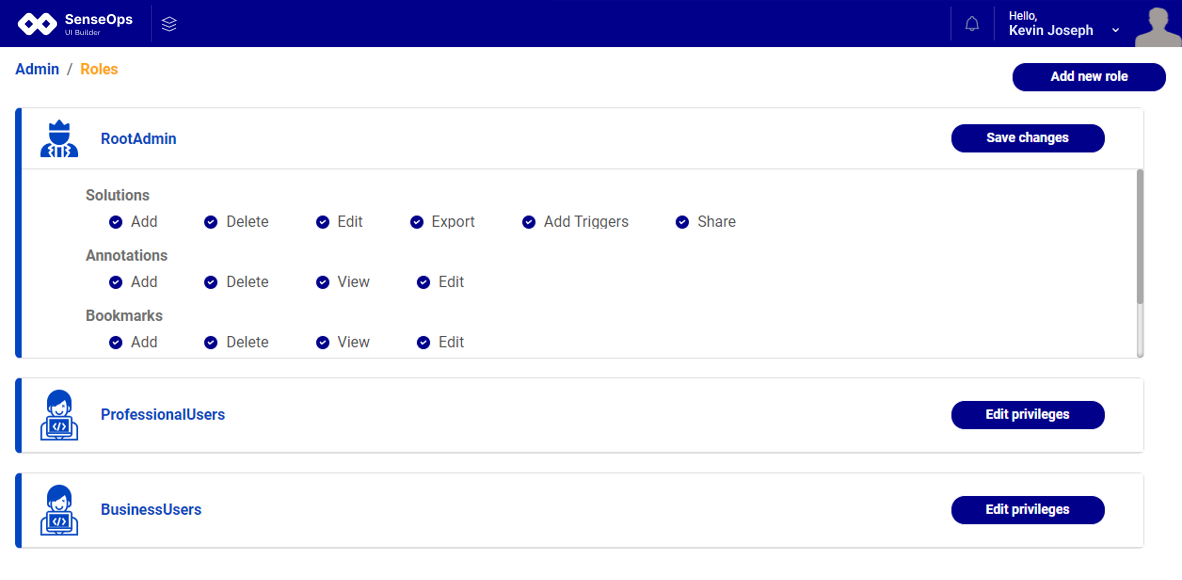

The users can be synced from the Qlik system using the screen below. Role of the the user can be changed here. Additionally we have option to filter the users from search option.



By default three user roles are available and the previlages of each role can be customized. The authorization would be dynamically obtained based on the configuration.


  • RootAdmin User - Root admin is the master user which deserves all the operational rights in SenseOps UI Builder.

  • Professional User - The professional user is a second-level admin user who has access to both Root admin and Business user settings.

  • Business User - This user has the fewest privileges, and can only view the dashboard in the solution page and make no changes to the boards and stories settings.

Site Settings

It is possible to do global settings for the entire programme in the site settings option. The details for the settings are listed below. Screenshot

Header settings

This option allows you to change the position, colour, and size of the header icon.

Icon settings

This option allows the user to manage the icon settings of all SenseOps UI Builder icons, including their position and title bar.

Solution settings

This will allow you to change the solution configuration, such as hiding the solution, publishing the solution, and filtering the breadcrum display options.

Sidebar setting allows you to save font and tooltip settings that are specific to the sidebar.

Filter settings

This option allows you to customize the filter setting theme, filter placement, and filter icon settings.

Sub Header settings

This is where you may set the sub header alignment and font details.

Grid settings

Each chart on the dashboard has its own grid attributes, including annotation visibility, grid header settings, export options, and hidden fields-related settings.

Theme settings

This option allows you to change the default theme settings, and the user can design a theme for all controls and display screens by using font details.

Title Bar settings

The title bar option is used to gather title name and title icon URL information.

Export settings

The Export option allows you to dynamically handle export to PDF and Excel based on the settings.

Annotation settings

In this area, you can customize the sharing options for annotations.

Solution Groups

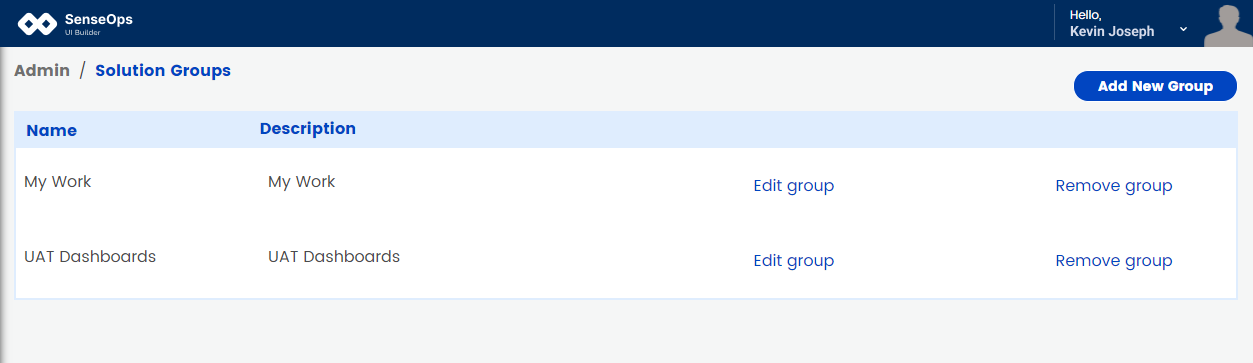

The solution group, which is initially available, can be used to construct and organise solutions. Based on the business case, the user can build and modify solution groups. Screenshot


An annotation is additional information associated with a specific place in a document or other piece of information that can be written for personal or organisational purposes. It's possible to create and distribute inside of SenseOps UI Builder.


The user will be able to Create Annotation in each chart. The user can add a note or comment to the selected details in the charts using this option. Screenshot


By clicking on the annotation icon or the View Annotation button on charts, you can see the created annotation list. Screenshot


These annotations can be shared with other users to highlight any relevant remarks or information. When making or editing an annotation, you can choose to share it.


The Delete button can be used to delete the annotation.

When a user creates an annotation and shares it with others in the same organisation, they will be notified through email.

The annotations can be read, and the shared user can indicate any remarks that need to be put in the comments box.


The adaptation of the product to match the needs of a particular language, culture, or desired population's "look-and-feel" is known as localization. Localization can be configured dynamically to make the user's life easier. Screenshot

By default, SenseOps UI Builder has 14 language conversions that can be used, and all the languages can be mapped to their respective languages using english terms.


A bookmark is a feature that allows you to tag charts, a certain range of data, or other filters so that you can quickly locate and read them later. Bookmark options could be created and shared based on data within the organisation.


The user must pick or filter the range of charts or data in tables in dashboards before viewing the Create Bookmark page by clicking on the bookmark icon. To save a bookmark, the user must first open the screen and provide the bookmark name and description. Screenshot


When a user clicks on the bookmark icon, the details of the bookmark will appear. The selected values would load in the board depending on the created bookmark when the user clicked on it. Screenshot


When a user clicks the Delete button, the saved bookmark is permanently removed.

SMTP Config

SMTP, is an email protocol used for sending email messages from one email account to another via the internet.

The user can configure email settings in this part, which will be utilised while writing the annotation and will be shared with the relevant individual based on the settings.

● Mail Config hostname - smtp mail host name

● Mail Port No - port number for to send mail

● Is Secured - SSL Required

● Auth Username - Mail Login UserName

● Auth Password - Mail Login password



This allows user to change port number and enable the Https. To enable Https user needs to update the .pfx file and password.
